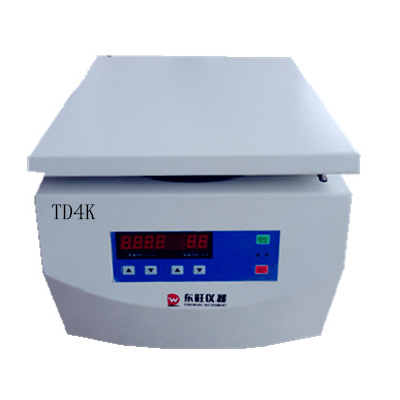

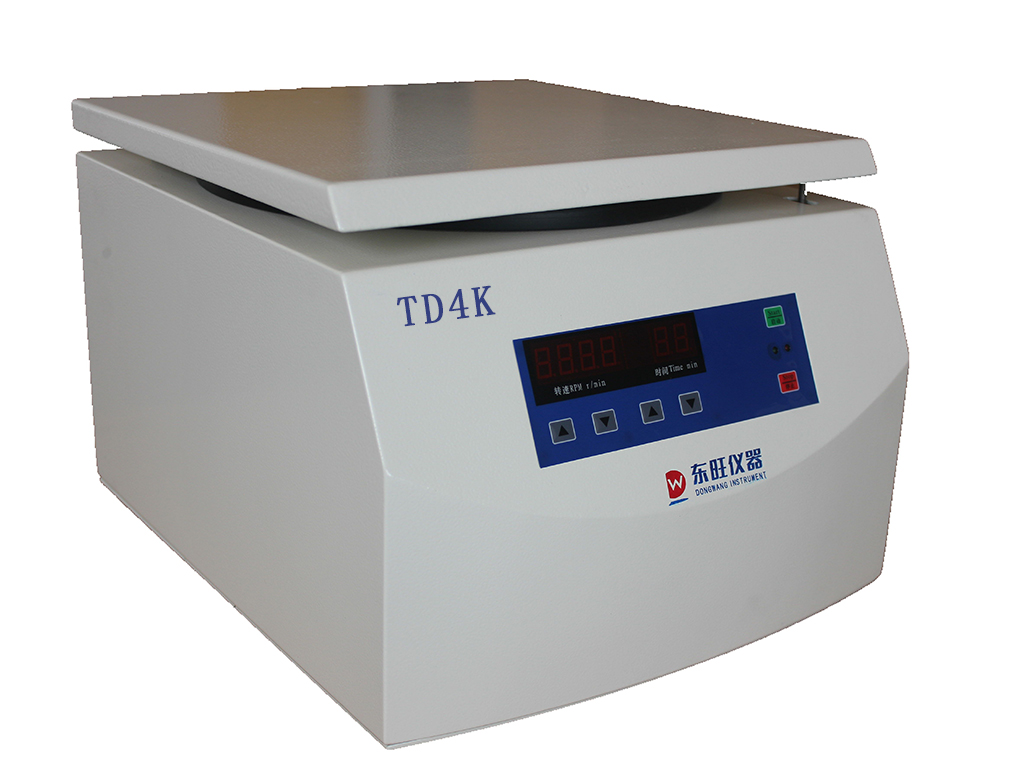

Blood-type serum centrifugeTD4K
TD4KBlood-type serum multi-use centrifuge is a special study of our company's technical commissioner, and in combination with many professional biotechnology companies at home and abroad and investigates the latest products developed after multiple trials. Mainly used in blood type serological, blood type routine testing, micromoroscopic gel, immunoassay and other experiments.
Product Features
● Drive:Using brushless DC motor drive, maintenance, large torque, fast speed, special combination shock absorbing device makes motor smooth operation, small vibration, low noise, and satisfies environmental requirements.
● Display:The microcomputer processor is precise control, touch the control panel, simple operation, and display various run parameters in real time.
● Film:The fuselage is used with high quality steel structure, stainless steel centrifugal cavity.
● Security:Electronic smart door lock; brushless motor; there is a system self-test protection program, safe and reliable, simple operation, scientific and practical.
● Excellent:Proprietary airflow guided design, small temperature and effective protective samples. Built-in a variety of conventional centrifugal work procedures, while the customer can enter the centrifuge program by pressing the button.
● Rotor:At the same time, there is a SERO red blood cell washing rotor, HLA lymphocyte washing rotor, and blood rheology studies have special rotors, with special rotors for bleeding bleeding.
Performance parameters
model | TD4K |
Maximum speed | 4000R / min |
Maximum relative centrifugal force | 2200× g |
Maximum capacity | 12× 15ml |
Corner rotor | 12× 15ml |
Horizontal rotor | 12 × 1 ml (HLA special rotor) (4000R / min) RFC: 1800g |
Horizontal rotor | 12 × 7ml (SERO special rotor) (4000R / min) RFC: 1800g |
Speed accuracy | ± 30r / min |
Timing range | 0-99min |
Machine noise | ≤58dB |
Motor | Brushless DC motor, microcomputer control |
power supply | AC 220V 50Hz 5A |
Dimensions | 430× 340 × 250mm |
weight | 20kg |
