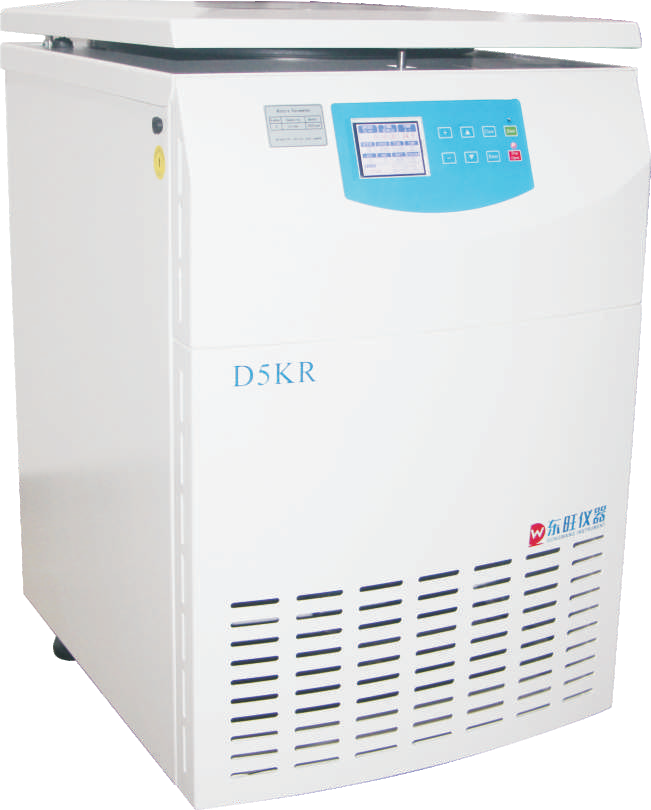

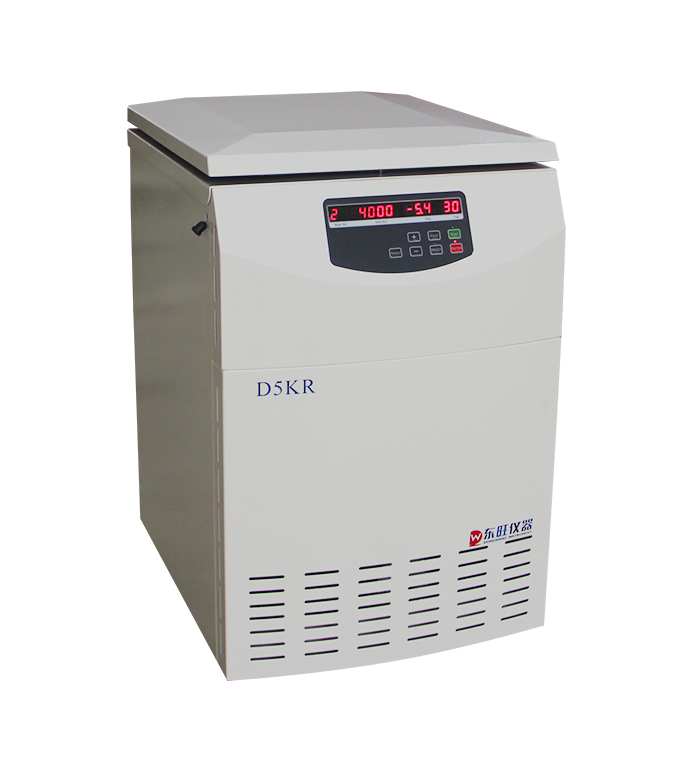

Low-speed frozen centrifugeD5kr
Low-speed frozen centrifuge series, mainly used in biochemical products, science and technology research, food safety, medical and health, blood stations, hospital medical science and technology education and production sector molecules biochemical, sanitation and other industries. The ideal equipment for the separation of platelet isolation and radioimmunoctiments were isolated from particles of different densities.
Product Features
● Drive:Using AC inverter motor drive, maintenance-free, large torque, fast lifting speed, special combined shock absorbing device to operate smoothly.
● Drive:Digital tube display LED or liquid crystal display LCD, user options.
LED display: Intelligent control, touch panel, intuitive digital display, run parameters can be automatically remembered, and RCF is directly set.
LCD shows: 40 kinds of custom working modes can be stored, diverted, short centrifugation, with 10 rising rates, easy to get centrifugation, and centrifugal effects are optimal.
● Refrigeration:Adopt imported fluorine-free compressor sets and control valves, small vibration, fast cooling, low noise, and satisfy environmental protection requirements. The rotor realizes the standby cooling function when the rotor is in a stationary state.
● Film:The fuselage is used with high quality steel structure, safe and reliable; stainless steel centrifugal cavity, rugged, easy to clean.
● Security:The rotor number recognition function has multiple protection functions such as self-locking, speeding, super temperature, imbalance, equipped with an electronic door lock to ensure safe and reliable operation.
Performance parameters
model | D5kr |
Maximum speed | 5000R / min |
Maximum relative centrifugal force | 4390× g |
Maximum capacity | 6× 500ml |
Speed accuracy | ± 20R / min |
Timing range | 0~ 99min |
Temperature control | -20° C ~ 40 ° C |
Temperature control accuracy | ± 1 ° C |
compressor | Import high-performance compressor group, fluorine-free refrigerant |
Machine noise | ≤58dB |
Motor | AC inverter motor, microcomputer control |
power supply | AC 220V 50Hz 20A |
Dimensions | 860× 720 × 1090mm |
weight | 190kg |
Low-speed frozen centrifugeD5kr

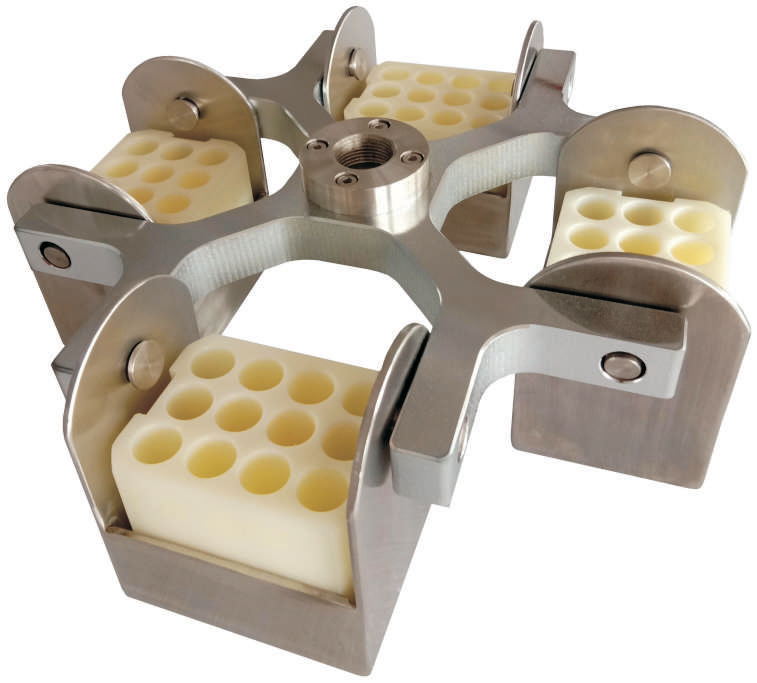

Adapted to rotor and centrifuge tube
Rotor number
| Maximum capacity | Maximum speed | Maximum relative centrifugal force | Cardiode size |
No.19 Fixed angle | 12 × 10ml | 5000R / min | 4390 × g | Φ16 × 81 |
No.52 Swinging bucket | 2 × 2 × 96 hole | 4000R / min | 2300 × g | Enzyme board |
No.56 Swinging bucket | 4 × 50 / 100ml | 5000R / min | 4390 × g | Φ38 × 124 |
No.57 Swinging bucket | 32 × 10 / 15ml | 4000R / min | 3500 × g | Φ16 × 114-118 |
No.61 Swinging bucket | 4 × 250/8 × 50/36 × 10ml | 4000R / min | 3500 × g | Φ64 × 112 |
No.62 Swinging bucket | 4 × 500/12 × 50/8 × 100ml | 4000R / min | 3580 × g | Φ80 × 140 |
No.66 Swinging bucket | 4 × 650ml | 4000R / min | 3580 × g | Φ99 × 128 |
No.73 Swinging bucket | 6 × 500ml | 4000R / min | 3700 × g | Φ8 × 140 |
No.76 Swinging bucket | 72 × 5ml | 4000R / min | 3500 × g | Φ14 × 54 |
No.77 Swinging bucket | 8 × 50 / 100ml | 4000R / min | 3500 × g | Φ28 × 105-115 |
No.79 Swinging bucket | 96 × 7ml | 4000R / min | 3500 × g | Illegitimately |
No.79 Swinging bucket | 80 × 7ml | 4000R / min | 2800 × g | Blood collection tube |
No.82 Swinging bucket | 148 × 7ml | 4000R / min | 3200 × g | Illegitimately |
No.82 Swinging bucket | 120 × 7ml | 4000R / min | 3200 × g | Blood collection tube |
