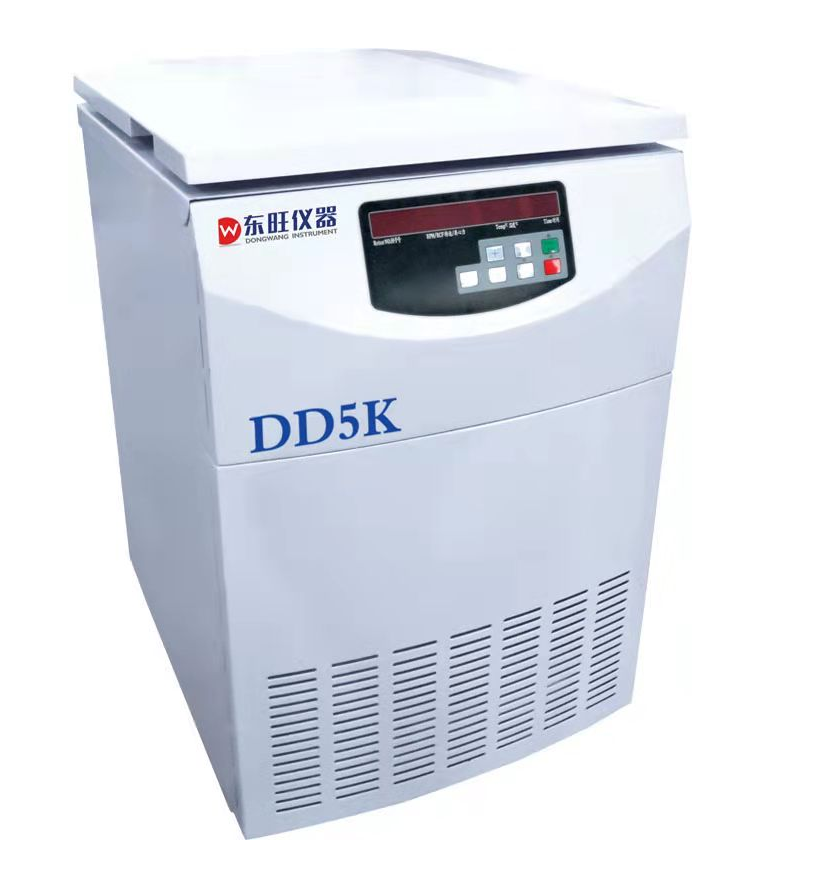

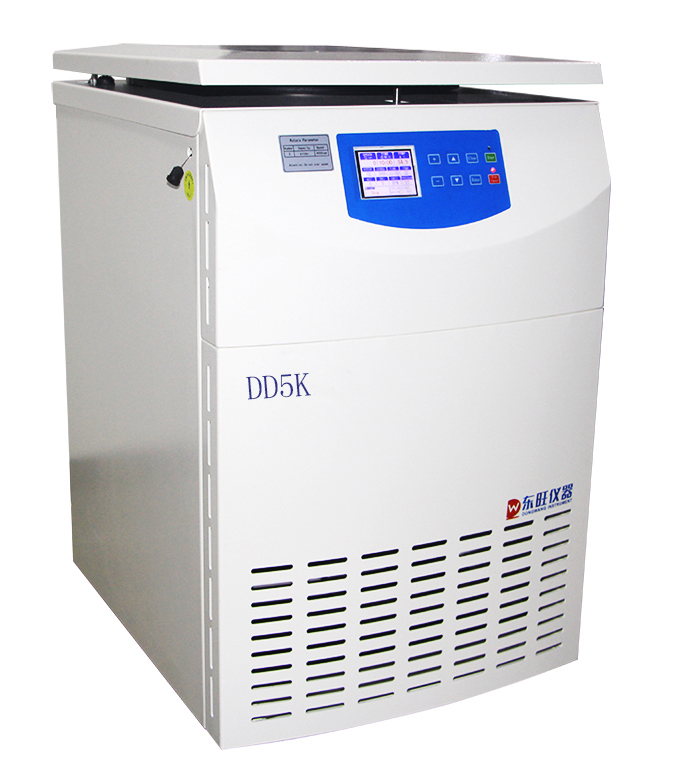

Federated low speed centrifugeDD5K
The low-speed centrifuge series is mainly used in biochemical products, science and technology research, food safety, medical and health, blood stations, hospital medical science and technology education and production sector molecular biochemical, sanitation and other industries. The ideal equipment for the separation of platelet isolation and radioimmunoctiments were isolated from particles of different densities.
Product Features
● Drive:Using AC inverter motor drive, maintenance-free, large torque, fast lifting speed, special combined shock absorbing device to operate smoothly.
● Drive:Digital tube display LED or liquid crystal display LCD, user options.
LED display LED Display: Intelligent Control, Touch Panel, Intuitive Digital Display, Run Parameters can be automatically remembered, and RCF is directly set.
LCD Display LCD Display: 40 kinds of custom working modes, point dynamics, short centrifuge, with 10 lift rates, easy to diversify centrifugation, centrifugal effects best.
● Film:The fuselage is used with high quality steel structure, safe and reliable; stainless steel centrifugal cavity, rugged, easy to clean.
● Security:The rotor number recognition function has multiple protection functions such as self-locking, speeding, super temperature, imbalance, equipped with an electronic door lock to ensure safe and reliable operation.
Performance parameters
model | D5kr |
Maximum speed | 5000R / min |
Maximum relative centrifugal force | 4390 × g |
Maximum capacity | 6 × 500ml |
Speed accuracy | ± 20R / min |
Timing range | 0～99min |
Machine noise | ≤58dB |
Motor | AC inverter motor, microcomputer controlAC |
power supply | AC 220V 50Hz 20A |
Dimensions | 860 × 720 × 1090mm |
weight | 70kg |
Adapted to rotor and centrifuge tube
Rotor number | Maximum capacity | Maximum speed | Maximum relative centrifugal force | Cardiode size |
No.19 Fixed angle | 12 × 10ml | 5000R / min | 4390 × g | Φ16 × 81 |
No.52 Swinging bucket | 2 × 2 × 96 hole HOLE | 4000R / min | 2300 × g | Enzyme board |
No.56 Swinging bucket | 4 × 50 / 100ml | 5000R / min | 4390 × g | Φ38 × 124 |
No.57 Swinging bucket | 32 × 10 / 15ml | 4000R / min | 3500 × g | Φ16 × 114-118 |
No.61 Swinging bucket | 4 × 250/8 × 50/36 × 10ml | 4000R / min | 3500 × g | Φ64 × 112 |
No.62 Swinging bucket | 4 × 500/12 × 50/8 × 100ml | 4000R / min | 3580 × g | Φ80 × 140 |
No.66 Swinging bucket | 4 × 650ml | 4000R / min | 3580 × g | Φ99 × 128 |
No.73 Swinging bucket | 6 × 500ml | 4000R / min | 3700 × g | Φ8 × 140 |
No.76 Swinging bucket | 72 × 5ml | 4000R / min | 3500 × g | Φ14 × 54 |
No.77 Swinging bucket | 8 × 50 / 100ml | 4000R / min | 3500 × g | Φ28 × 105-115 |
No.79 Swinging bucket | 96 × 7ml | 4000R / min | 3500 × g | Illegitimately |
No.79 Swinging bucket | 80 × 7ml | 4000R / min | 2800 × g | Blood collection tube |
No.82 Swinging bucket | 148 × 7ml | 4000R / min | 3200 × g | Illegitimately |
No.82 Swinging bucket | 120 × 7ml | 4000R / min | 3200 × g | Blood collection tube |
