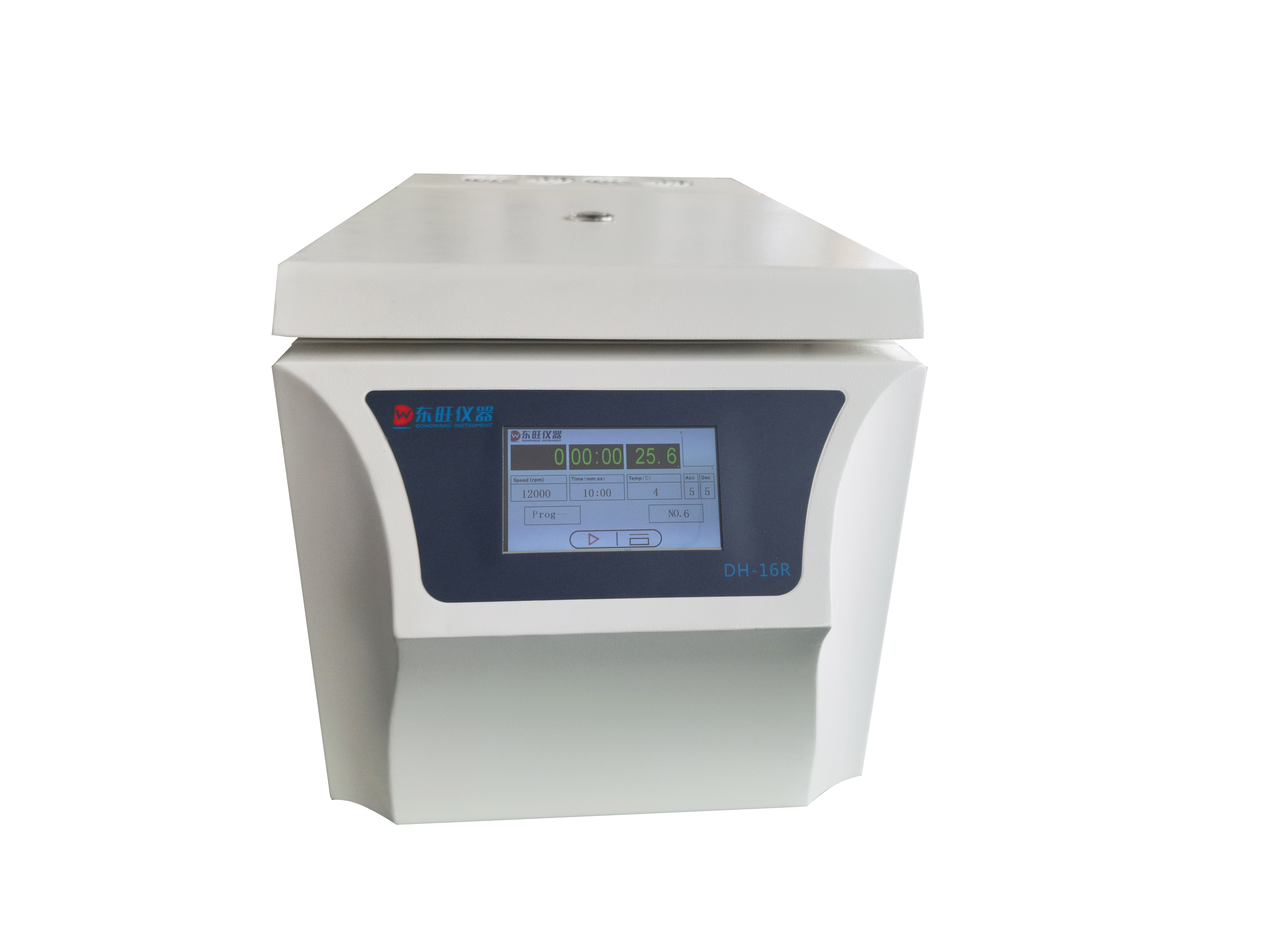

Desktop high speed centrifugeDH-16R
Suitable for biological、medicine、Experiment in the field of agriculture, is genetic gene、Protein nucleic acidPCRExperiment's preferred
Product Features
★ Display：5-inch HD touch screen, easy operation, display intuitive
★ Security: Automatically identify seven different rotors to eliminate security hazards from user misunderstandings
★ control: 9 speed speed, 10 speed drift, effectively prevent secondary suspension, centrifugal effect
★ program: Can store 15 sets of programs, ready for user calls
★ performance: AC variable frequency motor, high speed control accuracy
★ Safety: With speeding, door protection, unbalance protection, etc., ensuring people, machine safety
★ convenient: Speed and free switching
★ special: Special wind deeds to ensure that the rotor works at normal temperatures
★ professional ：Airtight rotor, effectively prevent aerosol
Performance parameters
model | DH-16R |
Maximum speed | 16500R / min |
Maximum relative centrifugal force | 21500× g |
Maximum capacity | 6× 50ml |
Speed accuracy | ± 20R / min |
Timing range | 0~ 99h59min59s |
Temperature control | -20° C ~ 40 ° C |
Temperature control accuracy | ± 1 ° C |
compressor | Import high-performance compressor group, fluorine-free refrigerant |
power supply | AC 220V 50Hz 15A |
Dimensions | 350× 495 × 350mm |
net weight |
Adapted to rotor and centrifuge tube
Rotor number
| Maximum capacity | Maximum speed | Maximum relative centrifugal force | Cardiode size |
No.1 Fixed angle | 12 × 1.5 / 2ml | 16500R / min | 18300 × g | Φ10x42 |
No.2 Fixed angle | 24 × 1.5 / 2ml | 14000R / min | 18756 × g | Φ10x42 |
No.3 Fixed angle | 48x0.5ml | 12000R / min | 13900 × g | Φ8x32 |
No.4 Fixed angle | 30 × 1.5 / 2ml | 14000R / min | 13900 × g | Φ10x42 |
No.5 Fixed angle | 12x5ml | 12000R / min | 10100 × g | Φ13x53 |
No.6 Fixed angle | 6x30ml | 13000R / min | 15300 × g | Φ25.5x94.3 |
No.7 Fixed angle | 6 × 50ml | 12000R / min | 17930 × g | Φ29 × 120 (round bottom) |
