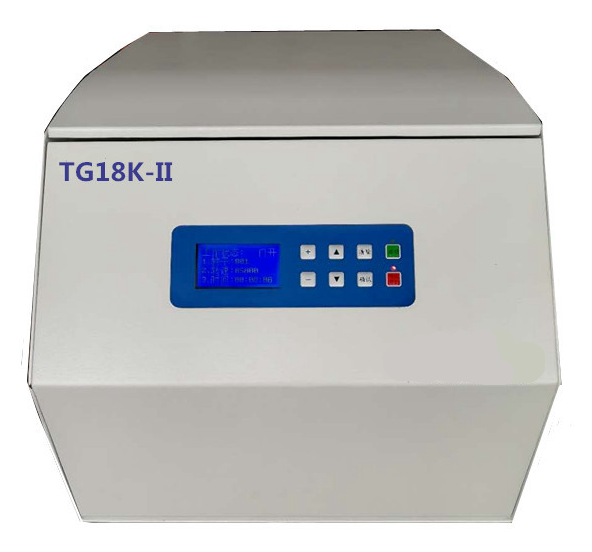

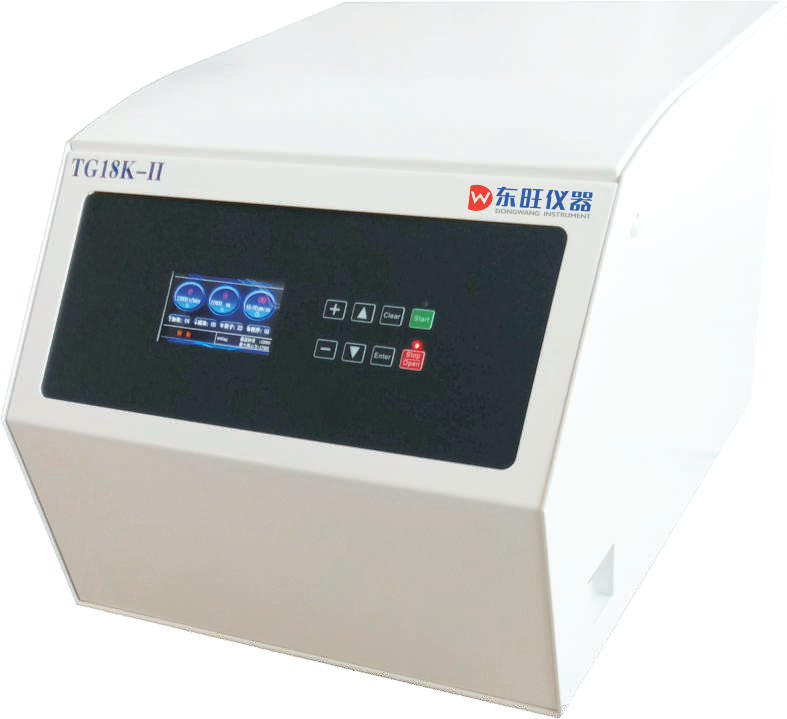

Desktop high speed large capacity centrifugeTG18K-Ⅱ
The series of centrifuges is an advanced intelligent instrument, which is widely used in biochemistry, medical, food safety, life science, agriculture, forestry, animal husbandry science, blood bank, blood station, biopharmaceutical, and other fields to separate samples for separation precipitation and concentration Ideal equipment is a high-tech product dedicated to replacing imported instruments.
Product Features
● Drive:Using AC inverter motor drive, maintenance-free, large torque, fast lifting speed, special combined shock absorbing device to operate smoothly.
● Display:Intelligent control, touch panel, LCD, LED double display, running parameters can be automatically remembered, and RCF is directly set.
● Film:The fuselage is high quality steel structure, safe and reliable; stainless steel is very durable, easy to clean.
● Security:The rotor number recognition function, has multiple protection functions such as door cover self-locking, speeding, imbalance, equipped with an electronic door lock to ensure safe and reliable operation.
● Control:40 kinds of custom work modes can be stored; the function, short centrifugation, which is convenient for centrifugation.
Performance parameters
| model | TG18K-II | ||
| Maximum speed | 18600R / min | ||
| Maximum relative centrifugal force | 23950 × g | ||
| Maximum capacity | 4 × 750ml | ||
| No.6 Fixed angle | 12 × 1.5ml (18600R / min) RFC: 23950 × g | No.10 Fixed angle | 18 × 0.5ml (18600R / min) RFC: 23950 × g |
| No.13 Fixed angle | 24 × 1.5 / 2.0ml (15000R / min) RFC: 21000 × g | No.14 Fixed angle | 10 × 5ml (16000R / min) RFC: 17420 × g |
| No.19 Fixed angle | 12 × 10ml (15000R / min) RFC: 23120 × g | No.22 Fixed angle | 6 × 50ml (13000R / min) RFC: 17400 × g |
| No.25 Fixed angle | 4 × 100ml (10000R / min) RFC: 9690 × g | ||
| No.55 Swinging bucket | 2 × 48 well (3000R / min) RFC: 1400 × g | No.56 Swinging bucket | 4 × 50 / 100ml (5000R / min) RFC: 4390g |
| No.57 Swinging bucket | 32 × 10 / 15ml (4000R / min) RFC: 2810 × g | ||
| No.61 Swinging bucket | 4 × 250/8 × 50/36 × 10ml (4000R / min) RFC: 3500 × g | No.61 Swinging bucket | 4 × 500/12 × 50/8 × 100ml (4000R / min) RFC: 3500 × g |
| No.69 Swinging bucket | 8 × 50 / 100ml (4000R / min) RFC: 2810 × g | No.77 Swinging bucket | 48/40 × 5ml (4000R / min) RFC: 2800 × g |
| No.82 Swinging bucket | 148 × 7ml (4000R / min) RFC: 3200 × g | No.82 Swinging bucket | 120 × 7ml (4000R / min) RFC: 3200 × g |
| Speed accuracy | ± 30r / min | ||
| Timing range | 0-99H59min59S | ||
| Machine noise | ≤58dB | ||
| Motor | AC inverter motor, microcomputer control | ||
| power supply | AC 220V 50Hz 18A | ||
| Dimensions | 460 × 590 × 420mm | ||
| weight | 65kg | ||
