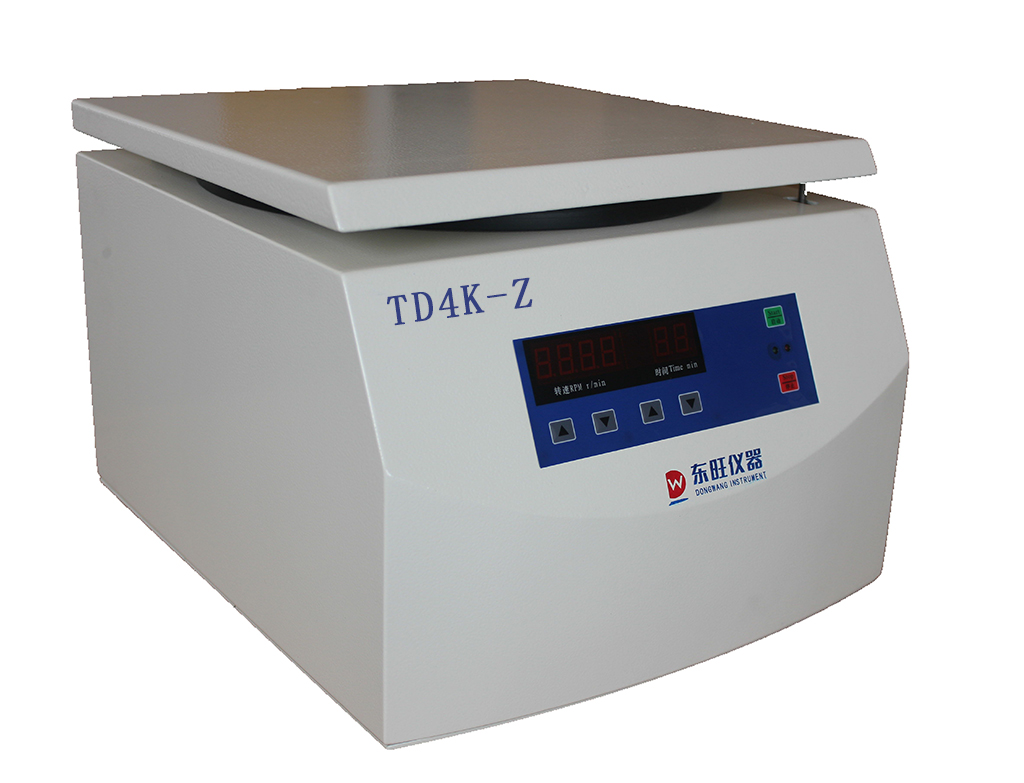

Desktop low speed automatic balance centrifugeTD4K-Z
Product Features
● Drive:Using brushless DC motor drive, maintenance, large torque, fast speed, special combination shock absorbing device makes motor smooth operation, small vibration, low noise, and satisfies environmental requirements.
● Display:Intelligent control, touch panel, intuitive digital display.
● Film:The fuselage is used with high quality steel structure, stainless steel.
● Security:Using mute motor, integrated electronic lock.
● Security:With multiple protection functions such as door cover, speed, imbalance, equipped with an electronic door lock to ensure safe and reliable operation process.
● Applicable:Suitable for biochemical laboratories, hospital clinical inspection, etc.
Performance parameters
model | TD4K-Z |
Maximum speed | 4000R / min |
Maximum relative centrifugal force | 2200× g |
Maximum capacity | 6× 50ml |
Fixed angle | 24 × 10ml (4000R / min) RFC: 2200 × g |
Fixed angle | 6 × 50ml (4000R / min) RFC: 2200 × g |
Fixed angle | 12 × 10 / 15ml (4000R / min) RFC: 2200 × g |
Fixed angle | 18 × 10ml (4000R / min) RFC: 2200 × g |
Timing range | 0~ 99min |
Motor | Brushless DC motor, microcomputer control |
power supply | AC 220V 50Hz 3A |
Dimensions | 430× 340 × 250mm |
weight | 20kg |
