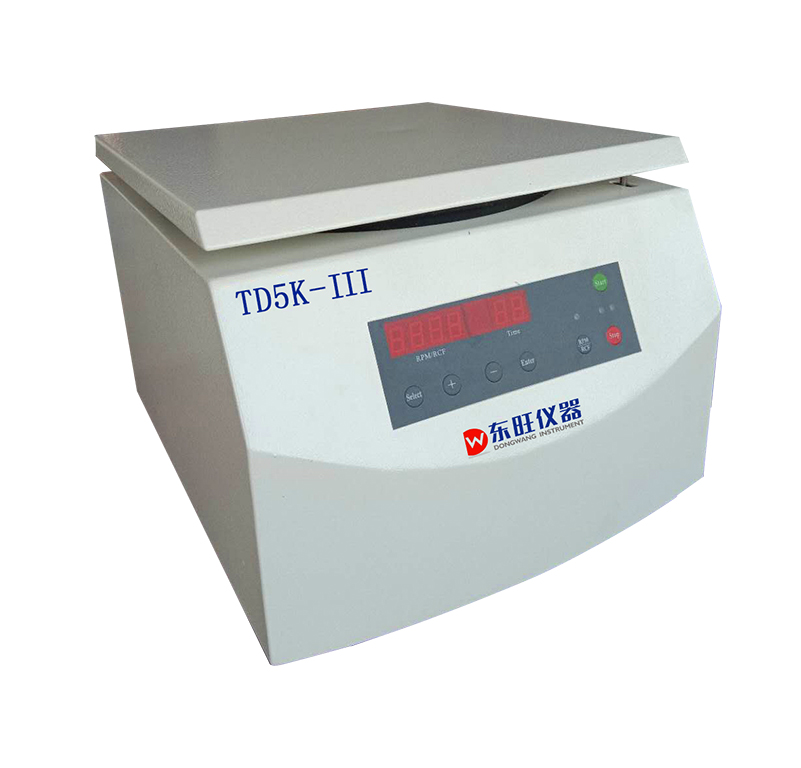

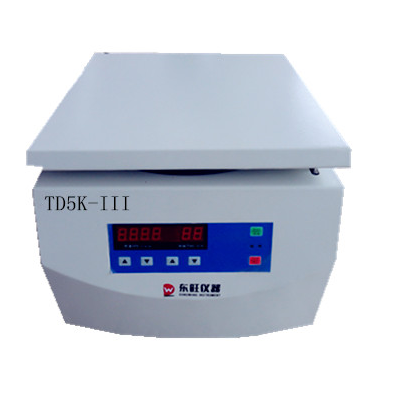

Desktop low speed centrifugeTD5K-Ⅲ
The series of centrifuge separation techniques are new technologies developed according to the state of particles in a practical centrifugal occasion, which is suitable for experimentation and research in the fields of biochemistry, hospital clinical inspections.
Product Features
● Drive:Using brushless DC motor drive, maintenance, large torque, fast rapid speed, special combined shock absorbing device makes the motor smoothly.
● Display:Intelligent control, touch panel, intuitive digital display, run parameters can be automatically remembered, and RCF can be set directly.
● Film:The fuselage is used with high quality steel structure, stainless steel centrifugal cavity, rugged, easy to clean.
● Security:With multiple protection functions such as door cover, speed, imbalance, equipped with an electronic door lock to ensure safe and reliable operation process.
● Control:Can be used directly to the speed, time and other parameters, convenient to use.
Performance parameters
model | TD5K-Ⅲ |
Maximum speed | 5000R / min |
Maximum relative centrifugal force | 4020× g |
Maximum capacity | 6× 50ml |
Speed accuracy | ± 30r / min |
Timing range | 0~ 99min |
Machine noise | ≤58dB |
Motor | Brushless DC motor, microcomputer control |
power supply | AC 220V 50HZ 8A |
Dimensions | 430× 340 × 250mm |
weight | 20kg |
Adapted to rotor and centrifuge tube
Rotor number | Maximum capacity | Maximum speed | Maximum relative centrifugal force | Cardiode size |
Fixed angle | 12 × 20ml | 5000R / min | 4020 × g | |
Fixed angle | 6 × 50ml | 5000R / min | 4020 × g | |
Fixed angle | 24 × 10ml | 5000R / min | 4020 × g | |
No.42 Fixed angle | 12 × 15ml | 5000R / min | 4020 × g | Φ28 × 105-115 |
