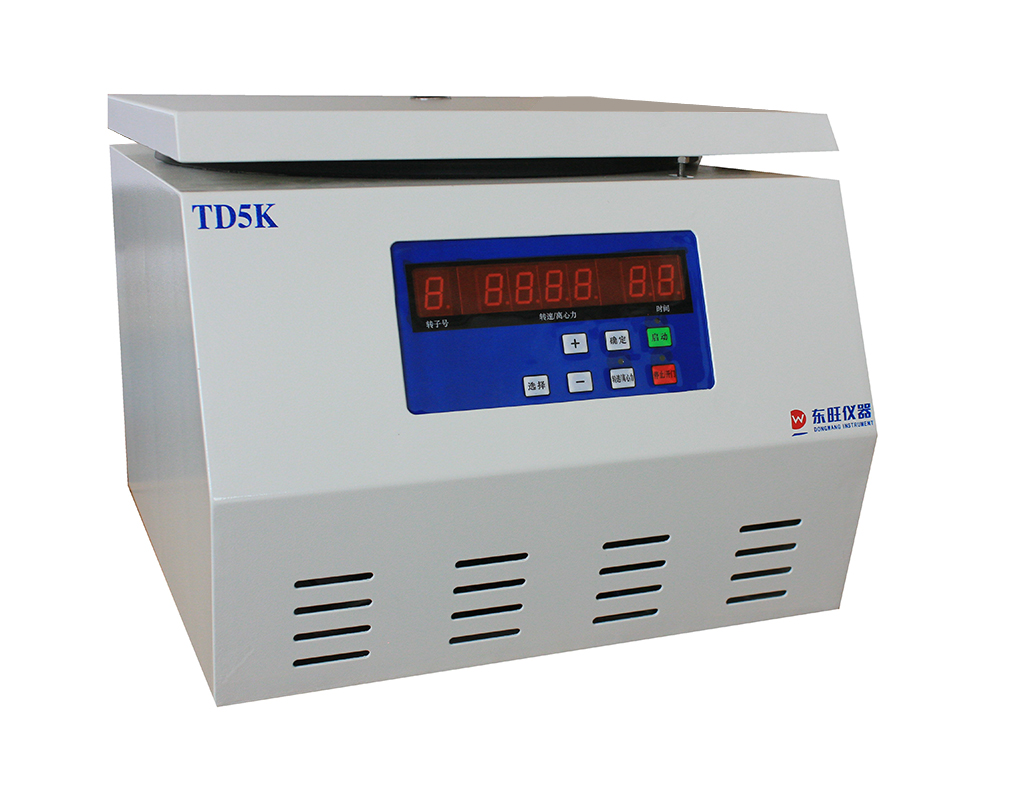

Desktop low speed centrifuge TD5K
The series of centrifuge separation techniques are new technologies developed according to the state of particles in a practical centrifugal occasion, which is suitable for experimentation and research in the fields of biochemistry, hospital clinical inspections.
Product Features
● Drive:Using brushless DC motor drive, maintenance, large torque, fast rapid speed, special combined shock absorbing device makes the motor smoothly.
● Display:Intelligent control, touch panel, LED / LCD option, running parameters can be automatically remembered, and RCF can be set directly.
● Film:The fuselage is used with high quality steel structure, stainless steel centrifugal cavity, rugged, easy to clean.
● Security:With multiple protection functions such as door cover, speed, imbalance, equipped with an electronic door lock to ensure safe and reliable operation process.
● Control:Can be used directly to the speed, time and other parameters, convenient to use.
Performance parameters
model | TD5K |
Maximum speed | 5500R / min |
Maximum relative centrifugal force | 5310× g |
Maximum capacity | 4× 500ml |
Speed accuracy | ± 30r / min |
Timing range | 0~ 99min |
Machine noise | ≤58dB |
Motor | Brushless DC motor, microcomputer control |
power supply | AC 220V 50Hz 15A |
Dimensions | 550× 455 × 370mm |
weight | 50kg |
Adapted to rotor and centrifuge tube
Rotor number | Maximum capacity | Maximum speed | Maximum relative centrifugal force | Cardiode size |
No.52 Swinging bucket | 2 × 2 × 96 hole | 4000R / min | 2380 × g | Enzyme board |
No.56 Swinging bucket | 4 × 50 / 100ml | 5500R / min | 5310 × g | Φ38 × 124 |
No.57 Swinging bucket | 32 × 10/15 / 5ml | 4000R / min | 2810 × g | Φ16 × 85-118 |
No.61 Swinging bucket | 4 × 250/8 × 50/36 × 10ml | 4000R / min | 3500 × g | Φ64 × 113 |
No.62 Swinging bucket | 4 × 500/16 × 50/8 × 100ml | 4000R / min | 3580 × g | Φ80 × 140 |
No.69 Swinging bucket | 48/40 × 7 / 5ml | 4000R / min | 2800 × g | Φ14 × 54 |
No.76 Swinging bucket | 72 × 7 / 5ml | 4000R / min | 2830 × g | Φ14 × 54 |
No.77 Swinging bucket | 8 × 50 / 100ml | 4000R / min | 2810 × g | Φ25 × 105-115 |
No.79 Swinging bucket | 96 × 7 / 5ml | 4000R / min | 2800 × g | Illegitimately |
No.79 Swinging bucket | 80 × 7ml | 4000R / min | 2800 × g | Blood collection tube |
