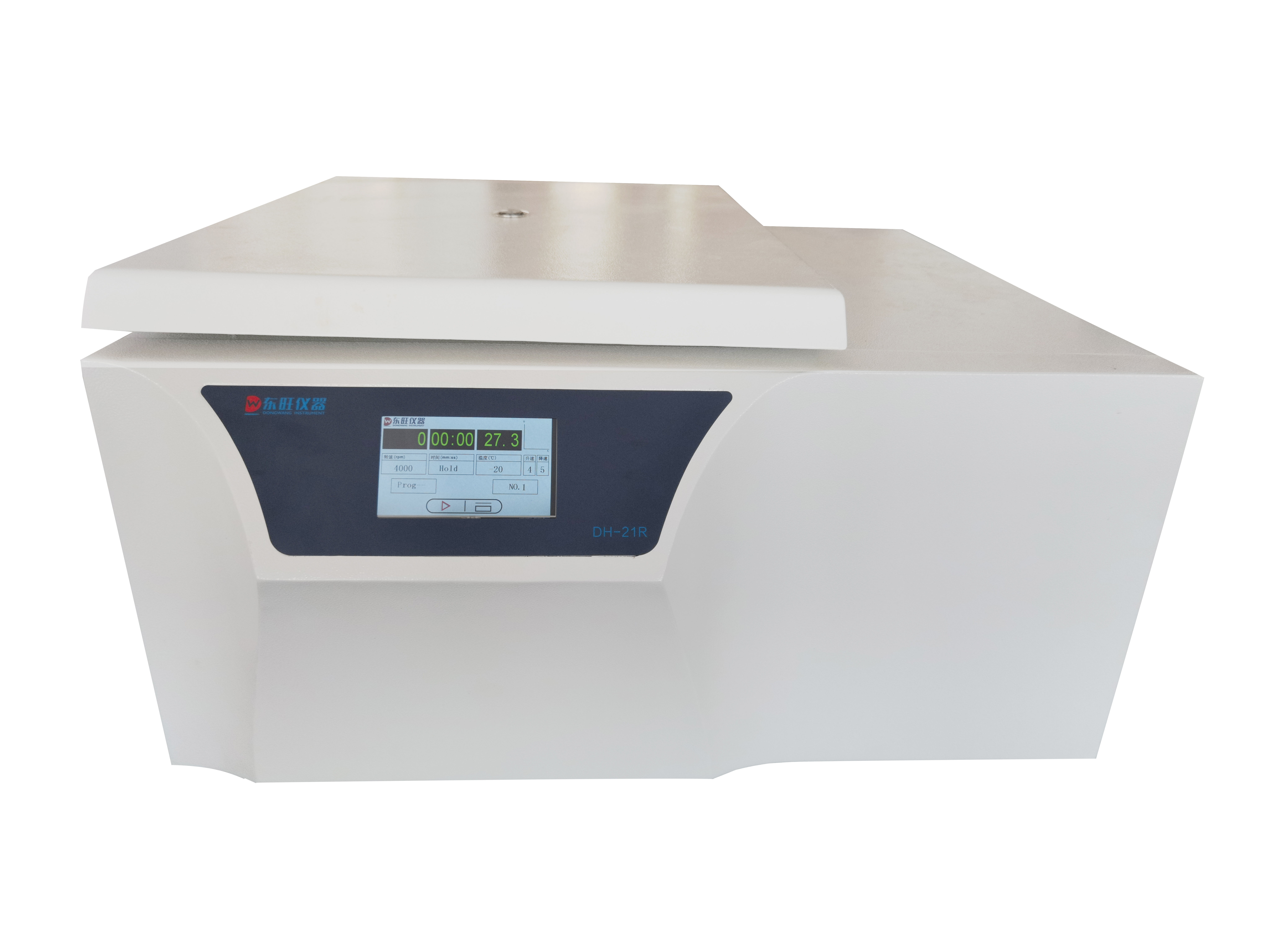

Desktop lowQuick frozen centrifugeDL-50R
Suitable for biological、medicine、Experiment in the field of agriculture, is genetic gene、Protein nucleic acidPCRExperiment's preferred
Product Features
★ Display：5-inch HD touch screen, easy operation, display intuitive
★ Security: Automatically identify seven different rotors to eliminate security hazards from user misunderstandings
★ control: 9 speed speed, 10 speed drift, effectively prevent secondary suspension, centrifugal effect
★ program: Can store 15 sets of programs, ready for user calls
★ performance: AC variable frequency motor, high speed control accuracy
★ Safety: With speeding, door protection, unbalance protection, etc., ensuring people, machine safety
★ convenient: Speed and free switching
★ special: Special wind deeds to ensure that the rotor works at normal temperatures
★ professional ：Airtight rotor, effectively prevent aerosol
Performance parameters
model | DL-50R |
Maximum speed | 5000R / min |
Maximum relative centrifugal force | 5310× g |
Maximum capacity | 4× 500ml |
Speed accuracy | ± 20R / min |
Timing range | 0~ 99h59min59s |
Temperature control | -20° C ~ 40 ° C |
Temperature control accuracy | ± 1 ° C |
compressor | Import high-performance compressor group, fluorine-free refrigerant |
power supply | AC 220V 50HZ 16A |
Dimensions | 720× 743 × 410mm |
net weight | 110kg |
Adapted to rotor and centrifuge tube
Rotor number | Maximum capacity | Maximum speed | Maximum relative centrifugal force | Cardiode size |
No.1 Swinging bucket | 4 × 50 / 100ml | 5500R / min | 5310 × g | Φ10x42 |
No.2 Swinging bucket | 8 × 50 / 100ml | 4200R / min | 3580 × g | Φ10x42 |
No.3 Swinging bucket | 4 × 8 × 15ml | 4200R / min | 3580 × g | Φ8x32 |
No.4 Swinging bucket | 4 × 250ml | 4200R / min | 3580 × g | Φ10x42 |
No.5 Swinging bucket | 4 × 500ml | 4000R / min | 2810 × g | Φ13x53 |
No.6 Swinging bucket | 2 × 2 × 96 hole | 4000R / min | 2380 × g | Φ enzyme board |
No.7 Swinging bucket | 48 × 5 / 7ml | 4000R / min | 2800 × g | Blood collection tube |
No.8 Swinging bucket | 96 × 5 / 7ml | 4000R / min | 2800 × g | Illegitimately |
