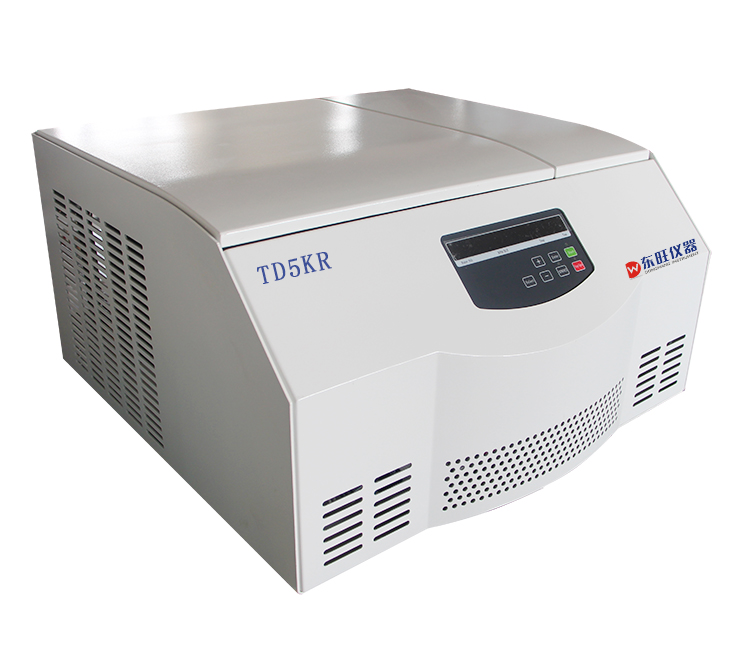

TD5KRDesktop low speed frozen centrifuge
Features:
◎ Microcomputer control, AC inverter motor drive, smooth operation, quiet.
◎ LED display speed, centrifugal force, temperature and time, etc., can change the parameters at any time during operation, no need to stop.
◎ Can set the centrifugal force, the RCF value, can be converted to each other, and can be observed at any time.
◎ 10 file plus, deceleration control, the 9th file free parking time can reach more than 540s, meet the requirements of special separation materials.
◎ The countdown time is smaller than one minute in seconds.
◎ Adopt electronic door lock, full steel lumen protective cover.
◎ Imported high energy environmental protection refrigeration system, the maximum speed can be maintained below -4 ° C.
◎ It can be equipped with a variety of rotors, adapters, etc., suitable for radioimmuno, clinical medicine, biochemistry, biopharmaceutical, blood products separation and purification.
technical parameter:
model | TD5KR | |||
Maximum speed | 5500rpm | Support power supply | AC 220 ± 22V 50Hz 15A | |
Maximum relative centrifugal force | 4600 × g | Total power | 1000W | |
Maximum capacity | 4 × 750ml | Machine noise | <65dB (a) | |
Timing range | 1min ~ 99min | Heart diameter | φ400mm | |
Temperature setting range | -20 ° C ~ 40 ° C | Dimensions (length × width × height) | 690 × 690 × 380mm | |
Temperature accuracy | ± 2.0 ° C | Outer packaging size (length × width × height) | 740 × 740 × 435mm | |
Speed accuracy | ± 20R / min | net weight | 100kg | |
/ | / | Gross weight | 115kg | |
Rotor category | Serial number | Rotor capacity | Speed / centrifugal force | |
Fixed angle | 1 | 4/6 × 50ml | 5500rpm / 4600 × g | |
Swinging bucket
| 1 | 4 × 50ml | 5000rpm / 4390 × g | |
4 × 100ml | 5000rpm / 4390 × g | |||
2 | 8 × 50 / 100ml | 4000rpm / 2810 × g | ||
16 × 10 / 15ml | 4000rpm / 2810 × g | |||
24 × 10 / 15ml | 4000rpm / 2810 × g | |||
32 × 10 / 15ml | 4000rpm / 2810 × g | |||
48 × 5 / 7ml (blood collection tube) | 4000rpm / 2810 × g | |||
64 × 5 / 7ml (blood collection tube) | 4000rpm / 2810 × g | |||
3 | 72 × 5 / 7ml (blood collection tube) | 4000rpm / 3500 × g | ||
4 | 96 × 5 / 7ml (blood collection tube) | 4000rpm / 3580 × g | ||
5 | 4 × 750ml | 4000rpm / 3580 × g | ||
6 | 4 × 500ml | 4000rpm / 3580 × g | ||
7 | 4 × 250ml | 4000rpm / 3500 × g | ||
8 | 48 tube strip hanging basket | 4000rpm / 3500 × g φ13 × 75-106 | ||
9 | 72 tube strip hanging basket | 4000rpm / 3500 × g φ13 × 75-106 | ||
10 | 96 tube stripping basket | 4000rpm / 3580 × g φ13 × 75-106 | ||
Enzyme board | 11 | 2 × 2 × 96 hole | 4000rpm / 2300 × g | |
12 | 2 × 2 × 48 hole | 4000rpm / 1700 × g | ||
