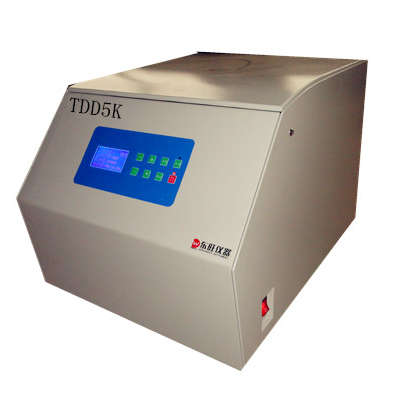

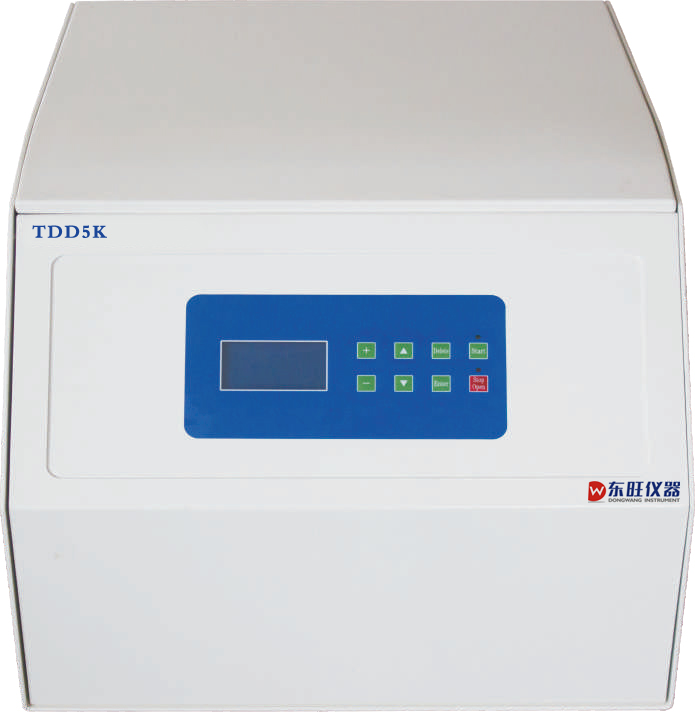

Desktop large capacity centrifugeTDD5K
The series centrifuge is suitable for separation of different liquids for biological, chemical, radiological, immunoratory and drugs.
Product Features
● Drive:Using AC inverter motor drive, maintenance-free, large torque, fast lifting speed, special combined shock absorbing device to operate smoothly.
● Display:Intelligent control, touch panel, LCD display, run parameters can be automatically remembered, and RCF is directly set.
● Film:The fuselage is high quality steel structure, safe and reliable; stainless steel is very durable, easy to clean.
● Security:Rotor number recognition function, electronic security door lock, has multiple protection functions such as self-locking, speeding, unbalanced door cover, and displays fault information and sound alarms in the display window.
● Control:10 kinds of lift rates, can store 40 custom working modes to optimize centrifugation.
Performance parameters
model | TDD5K |
Maximum speed | 5500R / min |
Maximum relative centrifugal force | 5310× g |
Maximum capacity | 4× 750ml |
No.52 Swinging bucket | 2 × 2 × 96 well (4000R / min) RFC: 2380 × g Tube size: enzyme board |
No.56 Swinging bucket | 4 × 50 / 100ml (5000R / min) RFC: 4390 × g Tube Size: φ38 × 124 |
No.57 Swinging bucket | 32 × 10 / 15ml (4000R / min) RFC: 3500 × g Tube Size: φ16 × 85-118 |
No.61 Swinging bucket | 4 × 250ml (4000R / min) RFC: 3500 × g Tube Size: φ64 × 113 |
No.62 Swinging bucket | 4 × 500ml (4000R / min) RFC: 3580 × g Tube Size: φ80 × 140 |
No.69 Swinging bucket | 48/40 × 5ml (4000R / min) RFC: 2800 × g Tube Size: φ14 × 54 |
No.77 Swinging bucket | 8 × 50 / 100ml (4000R / min) RFC: 2810 × g Tube Size: φ38 × 105-115 |
No.82 Swinging bucket | 148 × 7ml (4000R / min) RFC: 3200 × g Tube Size: Putting |
No.82 Swinging bucket | 120 × 7ml (4000R / min) RFC: 3200 × g Test tube size: blood collection tube |
Speed accuracy | ± 30r / min |
Timing range | 0~ 99h59min59s |
Machine noise | ≤58dB |
Motor | AC inverter motor, microcomputer control |
power supply | AC 220V 50Hz 15A |
Dimensions | 800× 700 × 400mm |
weight | 110kg |
