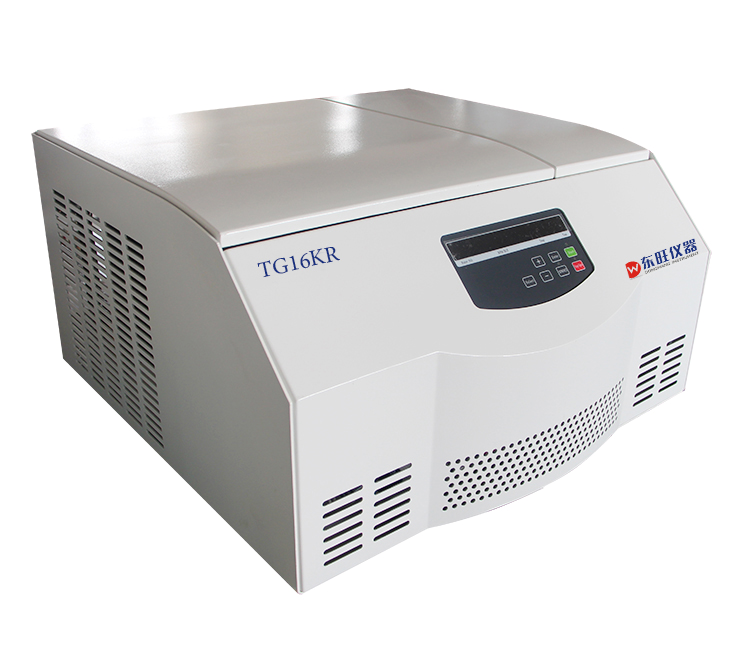

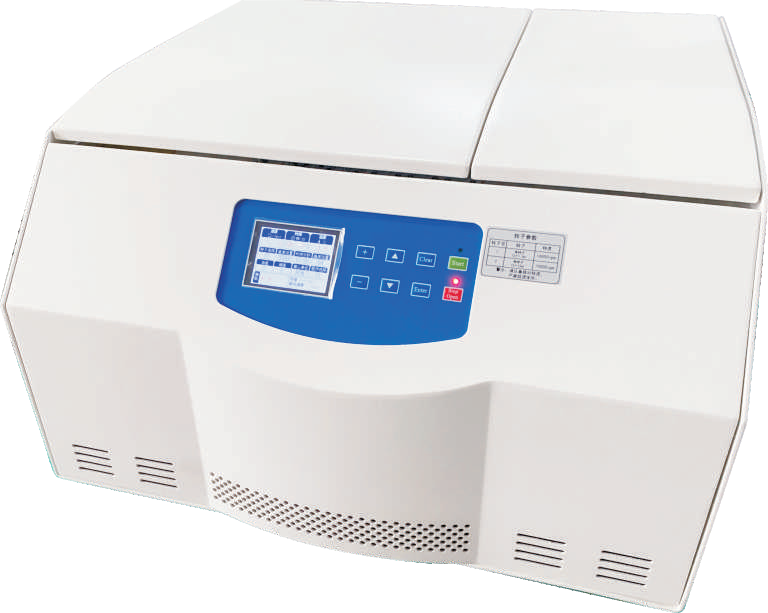

Desktop high speed frozen centrifuge TG16KR
The series of centrifuges is an advanced intelligent instrument, which is widely used in biochemistry, medical, food safety, life science, agriculture, forestry, animal husbandry science, blood bank, blood station, biopharmaceutical, and other fields to separate samples for separation precipitation and concentration Ideal equipment is a high-tech product dedicated to replacing imported instruments.
Product Features
● Drive:The AC inverter motor is used. With Soft Soft Brake function, prevent sample resuspended
● Control speed:Accelerated to the maximum speed of 14 seconds, from the maximum speed drop to zero, 15 seconds
● Display:Intelligent control, touch panel, LED / LCD optional, 10 rising speed option, speed / centrifuge intercom, can change parameters at any time during operation.
● Refrigeration:Imported fluorine-free compressor sets and control valves, rapid refrigeration, in line with environmental protection requirements.
● Rotor:Rotor standby cooling function. Rotor can be high pressure (121 ° C · 20 minutes)
● Film:The body uses a high quality steel structure; stainless steel centrifugal cavity, three-stage vibration damping, dot function, short centrifugation.
● Security:The rotor number recognition function has multiple protection functions such as self-locking, speeding, super temperature, imbalance, equipped with an electronic door lock.
Performance parameters
model | TG16kr |
Maximum speed | 16000R / min |
Maximum relative centrifugal force | 17800× g |

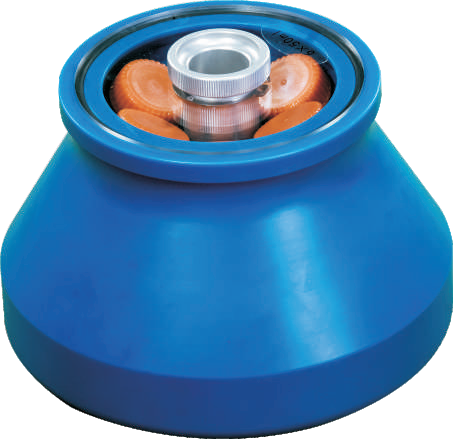

Maximum capacity | 4× 100ml |
No.6 Fixed angle | 12 × 1.5 / 2.0ml (16000R / min) RFC: 17800 × g |
No.10 Fixed angle | 18 × 0.5ml (16000R / min) RFC17800 × g |
No.13 Fixed angle | 24 × 1.5 / 2.0ml (13000R / min) RFC: 16060 × g |
No.14 Fixed angle | 10 × 5ml (13000R / min) RFC: 11500 × g |
No.19 Fixed angle | 12 × 10ml (12000R / min) RFC: 14800 × g |

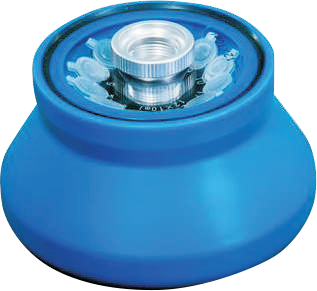

No.22 Fixed angle | 6 × 50ml (11000R / min) RFC: 12460 × g |
No.25 Fixed angle | 12 × 15ml (12000R / min) RFC: 14800 × g |
No.55 Swinging bucket | 2 × 48 well (3000R / min) RFC: 1400 × g |
Speed accuracy | ± 30r / min |
Timing range | 0~ 99min |
Temperature control | -20° C ~ 40 ° C |
Temperature control accuracy | ± 1 ° C |
compressor | Import high-performance compressor group, fluorine-free refrigerant |
Machine noise | ≤58dB |
Motor | AC inverter motor, microcomputer control |
power supply | AC 220V 50Hz 15A |
Dimensions | 600× 580 × 370mm |
weight | 90kg |
