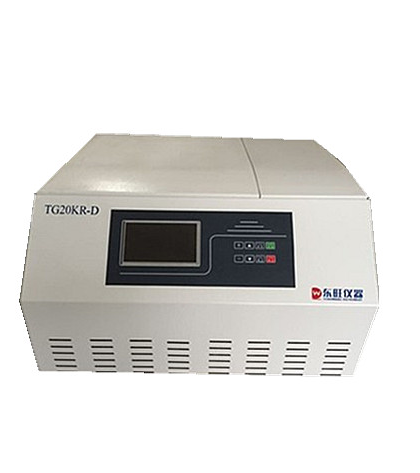

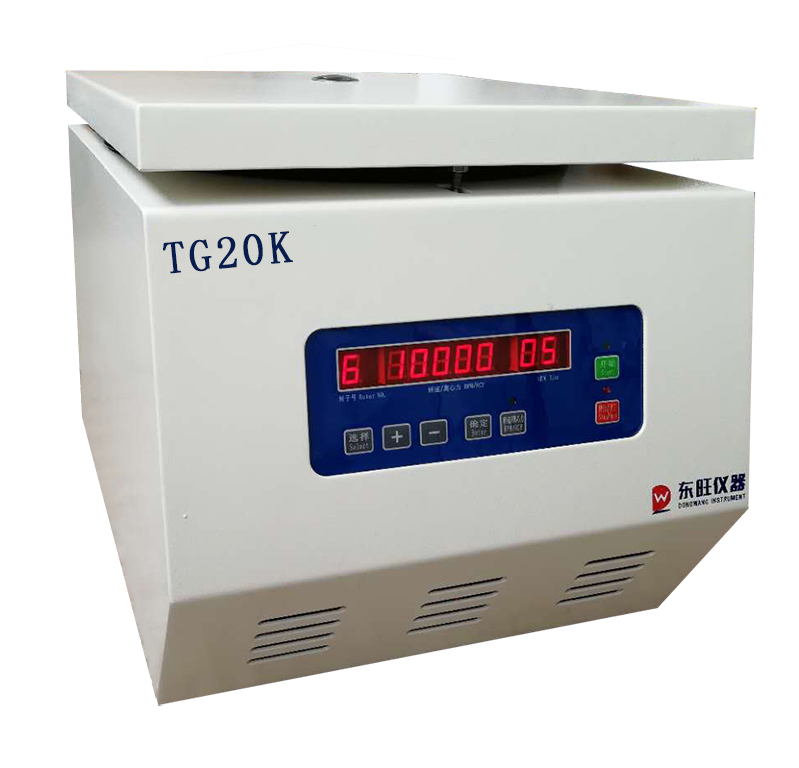

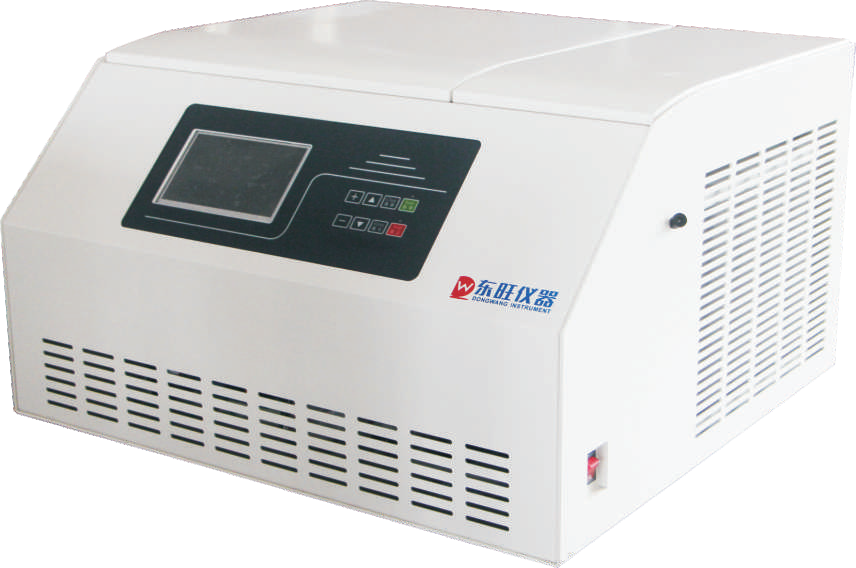

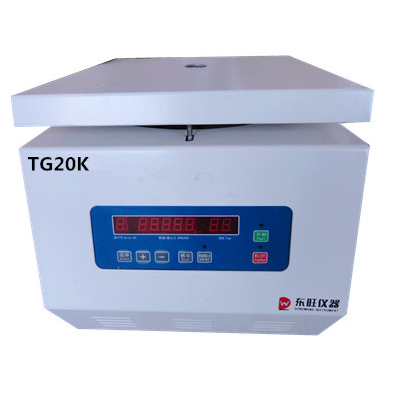

Desktop high speed centrifuge TG20K
The series of centrifuges is an advanced intelligent instrument, which is widely used in biochemistry, medical, food safety, life science, agriculture, forestry, animal husbandry science, blood bank, blood station, biopharmaceutical, and other fields to separate samples for separation precipitation and concentration Ideal equipment is a high-tech product dedicated to replacing imported instruments.
Product Features
● Drive:The AC inverter motor is used. With Soft Soft Brake function, prevent sample resuspended
● Control speed:It has 10 kinds of rising speed option. Centrifugal / speed setting and interchange, run parameters automatic memory.
● Display:Intelligent control, touch panel, LED digital tube display.
● Film:The fuselage is used in high quality steel structures; stainless steel centrifugal cavity, rugged and durable.
● Security:With a self-locking, speed, super temperature, imbalance, etc., equipped with an electronic door lock to ensure safe operation.
Performance parameters
model | TG20K |
Maximum speed | 20000R / min |
Maximum relative centrifugal force | 27200× g |
Maximum capacity | 4× 100ml |
No.1 Fixed angle | 12 × 1.5 / 2.0ml (20000R / min) RFC: 27200 × g |
No.2 Fixed angle | 24 × 1.5 / 2.0ml (16000R / min) RFC: 23555 × g |
No.3 Fixed angle | 12 × 5ml (15000R / min) RFC: 16420 × g |
No.4 Fixed angle | 12 × 10ml (14000R / min) RFC: 21120 × g |
No.5 Fixed angle | 6 × 50ml (13000R / min) RFC: 19400 × g |
No.6 Fixed angle | 4 × 100ml (10000R / min) RFC: 11200 × g |
No.7 Fixed angle | 48 × 0.5ml (13000R / min) RFC: 14740 × g |
No.8 Swingging bucket | 2 × 48 well (3000R / min) RFC: 1400 × g |
No.9 Swingging bucket | 4 × 10ml (4000R / min) RFC: 1430 × g |
Speed accuracy | ± 30r / min |
Timing range | LED 0~ 99min |
Machine noise | ≤58dB |
Motor | AC inverter motor, microcomputer control |
power supply | AC 220V 50Hz 18A |
Dimensions | 400× 350 × 330mm |
weight | 30kg |
