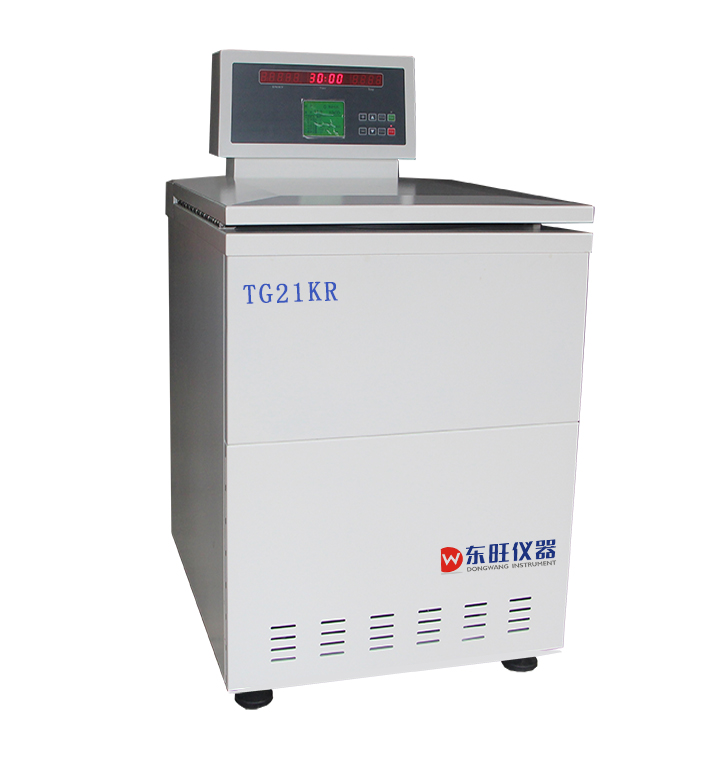

High speed frozen centrifugeTG21kr
This series of centrifuges are advanced intelligent instruments, which are mostly used to collect microorganisms, cell debris, cells, large ornate, sulfate precipitates, and immunopropiatures.
Product Features
★ Drive:The AC inverter motor is used. With Soft Soft Brake function, prevent sample resuspended
★ Speed speed:Accelerated to the maximum speed of 14 seconds, from the maximum speed drop to zero, 15 seconds
★ Display:Intelligent control, touch panel, LCD, LED double display, running parameters can be automatically remembered, and RCF is directly set.
● Refrigeration:Adopt imported fluorine-free compressor sets and control valves, small vibration, fast cooling, low noise, and satisfy environmental protection requirements.
★ Rotor:Rotor standby cooling function. Rotor can be high pressure (121 ° C · 20 minutes)
● Film:The body uses a high quality steel structure; stainless steel centrifugal cavity.
★ Security:The rotor number recognition function has multiple protection functions such as door cover, speed, imbalance.
● Control:10 kinds of lift rates, can store 40 custom working modes, dot dynamic, brief centrifugation, easy to diversify centrifugation.
Performance parameters
model | TG21kr |
Maximum speed | 21000R / min |
Maximum relative centrifugal force | 48900× g |
Maximum capacity | 6× 500ml |
Speed accuracy | ± 20R / min |
Timing range | 0~ 99h59min59s |
Temperature control | -20° C ~ 40 ° C |
Temperature control accuracy | ± 1 ° C |
compressor | Import high-performance compressor group, fluorine-free refrigerant |
Machine noise | ≤58dB |
Motor | AC inverter motor, microcomputer control |
power supply | AC 220V 50Hz 15A |
Dimensions | 810× 720 × 1220mm |
320kg |
Adapted to rotor and centrifuge tube
Rotor number
| Maximum capacity | Maximum speed | Maximum relative centrifugal force | Cardiode size |
No.5 Fixed angle | 12 × 10 / 1.5ml | 21000R / min | 48900 × g | Φ16 × 81 / φ11 × 41.5 |
No.9 Fixed angle | 6 × 50ml | 20000R / min | 43000 × g | Φ28 × 105 |
No.18 Fixed angle | 8 × 50ml | 15000R / min | 27870 × g | Φ29 × 106.5 |
No.24 Fixed angle | 8 × 100ml | 12000R / min | 19830 × g | Φ38 × 124 |
No.27 Fixed angle | 4 × 250ml | 12000R / min | 19960 × g | Φ64 × 113 |
No.32 Fixed angle | 6 × 500ml | 8000R / min | 12580 × g | Φ74 × 168 |
No.33 Fixed angle | 6 × 300ml \ 250ml | 12000R / min | 22470 × g | Φ63 × 157 (round bottom) |
No.14 continuous flow | 1000ml | 14000R / min | 21500 × g | 200-600ml / min |
No.53 Swinging bucket | 2 × 2 × 96 hole | 4000R / min | 2300 × g | Enzyme board |
No.58 Swinging bucket | 32 × 15ml | 4000R / min | 3160 × g | Φ16 × 114-118 |
No.63 Swinging bucket | 4 × 500ml | 5000R / min | 5470 × g | Φ8 × 140 |
No.65 Swinging bucket | 4 × 50ml | 5000R / min | 4390 × g | Φ28 × 105-115 |
No.78 Swinging bucket | 8 × 50ml | 4000R / min | 2950 × g | Φ28 × 105-115 |
