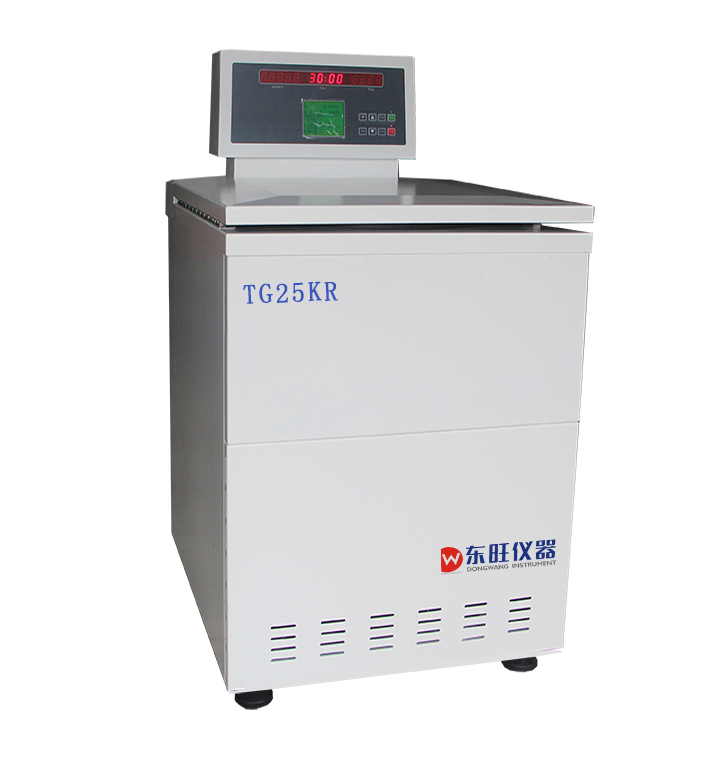

High speed frozen centrifuge TG25KR
This series of centrifuges are advanced intelligent instruments, which are mostly used to collect microorganisms, cell debris, cells, large ornate, sulfate precipitates, and immunopropiatures.
Product Features
● Drive:The AC inverter motor is used. With Soft Soft Brake function, prevent sample resuspended
● Control speed:Accelerated to the maximum speed of 14 seconds, from the maximum speed drop to zero, 15 seconds
● Display:Intelligent control, touch panel, LCD, LED double display, running parameters can be automatically remembered, and RCF is directly set.
● Refrigeration:Adopt imported fluorine-free compressor sets and control valves, small vibration, fast cooling, low noise, and satisfy environmental protection requirements.
● Rotor:Rotor standby cooling function. Rotor can be high pressure (121 ° C · 20 minutes)
● Film:The body uses a high quality steel structure; stainless steel centrifugal cavity.
● Security:The rotor number recognition function has multiple protection functions such as door cover, speed, imbalance.
● Control:10 kinds of lift rates, can store 40 custom working modes, dot dynamic, brief centrifugation, easy to diversify centrifugation.
Performance parameters
model | TG25kr |
Maximum speed | 25000R / min |
Maximum relative centrifugal force | 64800× g |
Maximum capacity | 6× 500ml |
Speed accuracy | ± 20R / min |
Timing range | 0~ 99h59min59s |
Temperature control | -20° C ~ 40 ° C |
Temperature control accuracy | ± 1 ° C |
compressor | Import high-performance compressor group, fluorine-free refrigerant |
Machine noise | ≤58dB |
Motor | AC inverter motor, microcomputer control |
power supply | AC 220V 50Hz 35A |
Dimensions | 810× 720 × 1220mm |
Adapted to rotor and centrifuge tube
Rotor number
| Maximum capacity | Maximum speed | Maximum relative centrifugal force | Cardiode size |
No.3 Fixed angle | 24 × / 1.5 / 2.0ml | 25000R / min | 64800 × g | Φ10 × 42 |
No.4 Fixed angle | 18 × 10 / 1.5ml | 23000R / min | 60460 × g | Φ16 × 81 |
No.8 Fixed angle | 8 × 50ml | 20000R / min | 46420 × g | Φ29 × 105 |
No.12 Fixed angle | 4 × 250 / 300ml | 16000R / min | 38070 × g | Φ64 × 113 / φ63 × 157 |
No.24 Fixed angle | 8 × 100ml | 13000R / min | 19830 × g | Φ38 × 124 |
No.32 Fixed angle | 6 × 500ml | 10000R / min | 17700 × g | Φ69 × 160 |
No.51 Continuous flow | 1000ml | 16000R / min | 28100 × g | 200-600ml / min |
No.53 Swinging bucket | 2 × 2 × 96 hole | 4000R / min | 2380 × g | Enzyme-labeled rotor |
No.58 Swinging bucket | 32 × 15ml | 4000R / min | 3160 × g | Φ16 × 114-118 |
No.63 Swinging bucket | 4 × 500ml | 5000R / min | 5470 × g | Φ80 × 140 |
No.65 Swinging bucket | 4 × 50ml | 5000R / min | 4390 × g | Φ28 × 105-115 |
